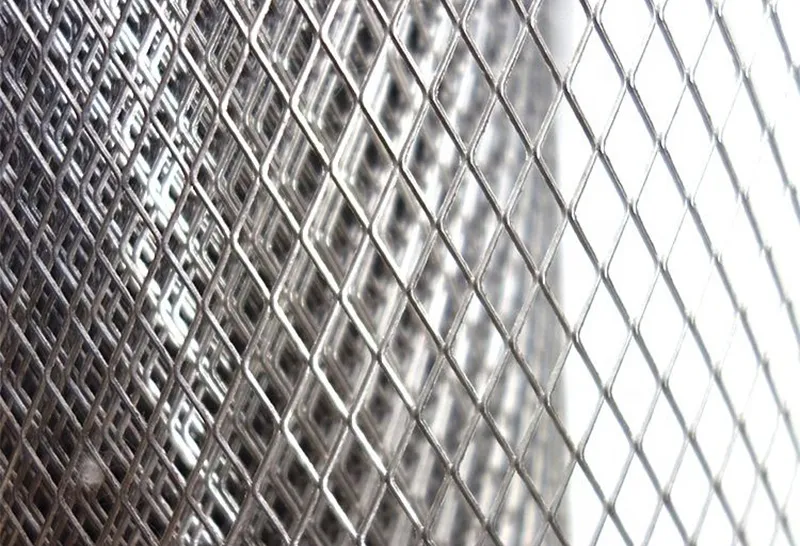

Expanded Metal Mesh

Expanded steel mesh is a kind of metal mesh product, and it is made from metal plates that are pressed, die-cut and expanded by special machinery (steel punching and shearing machines). It is a versatile and economical product made from high-quality metal sheets. We can manufacture expanded metal mesh in a variety of sizes, openings and material types, either in coil or sheet form.

Next Product Inquire Now

Product Details

Introduction Specifications Surface Treatment Applications

Introduction:

Metal mesh cloth is made from solid metal sheets that are evenly cut and stretched to create diamond-shaped openings. When fabricating the metal mesh cloth, each row of diamond-shaped openings is offset from the next row. This product is called standard metal mesh cloth. The metal cloth can be rolled to produce flat metal mesh sheets.

Specifications:

SWM: The length of the short diagonal from node to the center of the node.

LWM: The length of the long diagonal from node to the center of the node.

SWD: The length of the short diagonal of the mesh opening.

LWD: The length of the long diagonal of the mesh opening.

Strand: The length of the wire stems used to make the metal sheet.

Binding: Two-node connection.

Surface Treatment:

PVC coating, galvanizing, epoxy resin, anodizing, anti-collision paint, etc.

Applications:

Expanded metal mesh is widely used in railways, highways, civil construction, water conservancy projects, exterior wall decoration, chemical industry and other industries. And it's also used as window screens, and filters, etc.

Expanded Metal Mesh

The following is some specifications for the expanded metal:
thickness of plate	nominal size of mesh			size of standard products		Calculated weigth
(mm)	(mm)			(mm)
THICKNESS	SWD	LWD	STRAND	WIDTH	LENGTH	kg/m2
0.8	10	25	1.12			1.41
	12	30	1.35
	15	40	1.68
2	18	50	2.03	1800	3600
	22	60	2.47	2000	4000
	29	80	3.26	2500	5000	4.42
	36	100	4.05			4.42
	44	120	4.95			5.29
3	36	100	4.05
	44	120	4.95
	55	150	4.99	2000	5000	4.27
	55	150	4.99	2500	6400	4.27
	65	180	4.6	2000	6400	3.33
	65	180	4.6	2500	8000	3.33
4	22	60	4.5	1500	2000-3000	12.84
	30	80	5	\|	2000-4000	10.46
	38	100	6	2000	2000-4500	9.91
5	24	60	6		2000-3000	19.62
	35	80	6		2000-4000	14.71
	38	100	7		2000-4500	14.67
	56	150	6		2000-6000	8.41
	76	200	6		2000-6000	6.19
6	32	80	7		2000-4000	20.6
	38	100	7		2000-4500	17.35
	56	150	7		2000-6000	11.77
